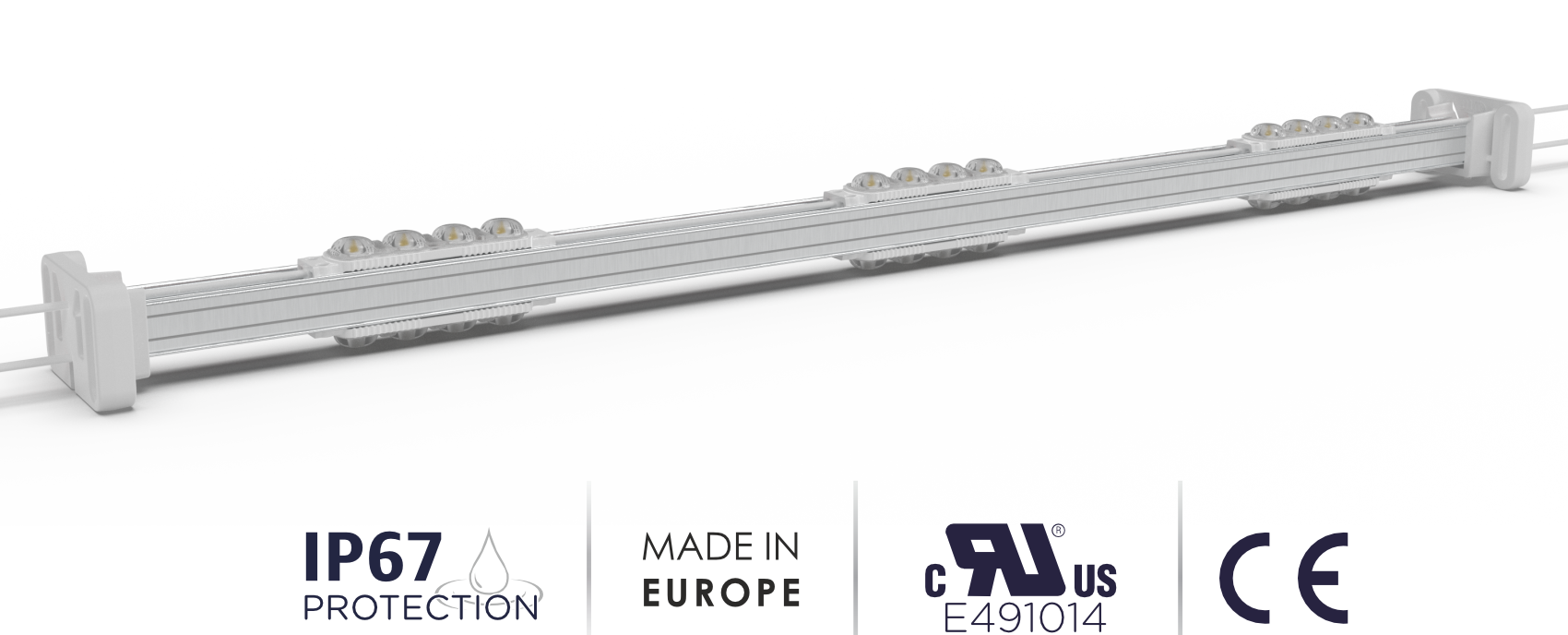

The Deniz LEDs Midi Stick components offer the most flexible cabinet lighting and retrofit product on the market. This innovative system gives you the flexibility to light any sized sign cabinet, single or double sided, without having to increase your inventory!

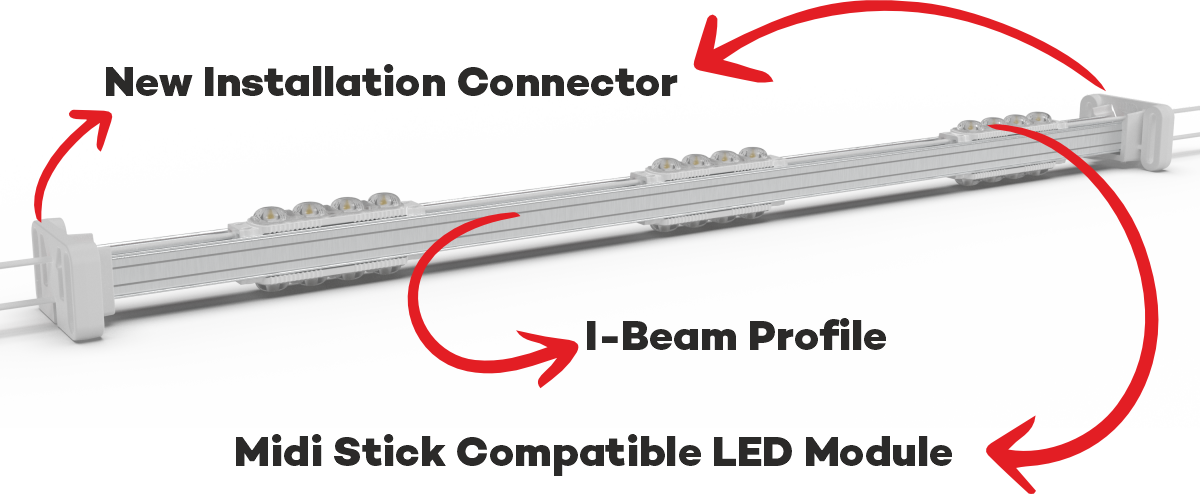

The Midi Stick comes in 240cm lengths that you cut to whatever size you need. Once cut to length, simply snap any of the Midi product family modules into the unique “I‑Beam” design and install in your sign cabinet! This groundbreaking design allows you to adjust the modules closer together to increase brightness by simply sliding them closer. The rigid “I‑Beam” design also allows horizontal installation with no sag.

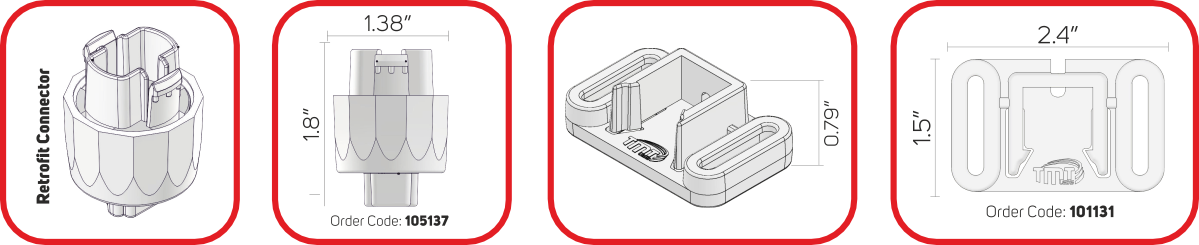

For retrofit applications, nothing beats the Midi Stick system. Outfit your trucks with 240cm Midi Sticks and bags of modules and you can retrofit any sign without stocking multiple lengths of competitors’ pre‑made sticks. Simply cut the stick to length, snap on the retrofit connector, snap in the Midi modules and install!
Replacing 300cm lamps? Connect a 60cm piece to a 240cm stick using two New Construction connectors back‑to‑back. This innovation enables you to outfit almost any cabinet without a prior survey!



The Midi Stick comes in 8’ lengths that you cut to whatever size you need. Once cut to length, simply snap any of the Midi product family modules into the unique “I‑Beam” design and install in your sign cabinet!
![]() |
![]() |
|||||||
|---|---|---|---|---|---|---|---|---|
| Single Side with Midi 4 24V | Single Side with Midi 3 12V | |||||||
| Length cm | Input Voltage | # of Modules | Total Lumen | Midi Stick Watt | Input Voltage | # of Modules | Total Lumen | Midi Stick Watt |
| 60 | 24V | 2 | 600 | 4 | 12V | 3 | 540 | 4,5 |
| 90 | 24V | 3 | 900 | 6 | 12V | 5 | 900 | 7,5 |
| 120 | 24V | 4 | 1200 | 8 | 12V | 6 | 1080 | 9 |
| 150 | 24V | 5 | 1500 | 10 | 12V | 8 | 1440 | 12 |
| 180 | 24V | 6 | 1800 | 12 | 12V | 9 | 1620 | 13,5 |
| 210 | 24V | 7 | 2100 | 14 | 12V | 11 | 1980 | 16,5 |
| 240 | 24V | 8 | 2400 | 16 | 12V | 12 | 2160 | 18 |
| 270 | 24V | 9 | 2700 | 18 | 12V | 13 | 2340 | 19,5 |
| 300 | 24V | 10 | 3000 | 20 | 12V | 15 | 2700 | 22,5 |
![]() |
![]() |
|||||||
|---|---|---|---|---|---|---|---|---|
| Double Side with Midi 4 24V | Double Side with Midi 3 12V | |||||||
| Length cm | Input Voltage | # of Modules | Total Lumen | Midi Stick Watt | Input Voltage | # of Modules | Total Lumen | Midi Stick Watt |
| 60 | 24V | 4 | 1200 | 8 | 12V | 6 | 1080 | 9 |
| 90 | 24V | 6 | 1800 | 12 | 12V | 10 | 1800 | 15 |
| 120 | 24V | 8 | 2400 | 16 | 12V | 12 | 2160 | 18 |
| 150 | 24V | 10 | 3000 | 20 | 12V | 16 | 2880 | 24 |
| 180 | 24V | 12 | 3600 | 24 | 12V | 18 | 3240 | 27 |
| 210 | 24V | 14 | 4200 | 28 | 12V | 22 | 3960 | 33 |
| 240 | 24V | 16 | 4800 | 32 | 12V | 24 | 4320 | 36 |
| 270 | 24V | 18 | 5400 | 36 | 12V | 26 | 4680 | 39 |
| 300 | 24V | 20 | 6000 | 40 | 12V | 30 | 5400 | 45 |

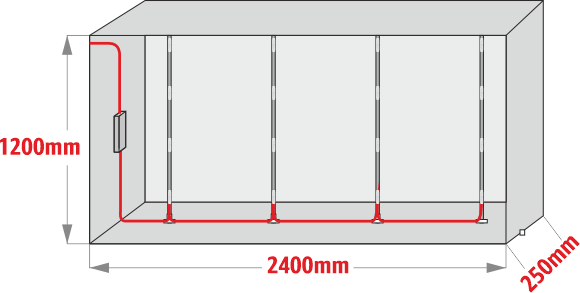

120 × 240 × 25 cm Double Side Cabinet Lighting Solution with Midi 4 12V 1,68W
| Product: | Midi 4 12V 1,68 Watt |
| # of Modules per Bar: | 8 pcs |
| Total # of Modules: | 32 pcs |
| Total Lumen: | 8000 Lm |
| Power Consumption: | 53,76 Watt |
| Power Supply: | 1×60 watt Class 2 Power Supply |
